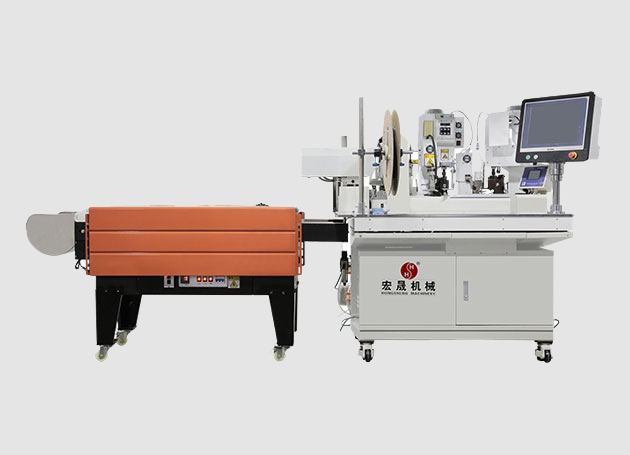

Product name: HS-62326 Double-pressure double-through heat shrinkable casing machine
Product Features
●The equipment realizes continuous automatic processing of automatic wire feeding, cutting and stripping, double-end crimping terminals, and double-through heat shrinkable sleeves.
● Wire splitting and stripping ends, double-through heat-shrinkable tubing and heat-shrink fully-automatic completion, the single machine capacity is equivalent to the production capacity of 6 to 8 semi-automatic production lines.
● PLC control, touch screen operation, simple operation and quick adjustment.
●The main components of the equipment adopt well-known international and domestic brands to ensure the reliability and service life of the equipment.
|
model |
HS-62326 |
| power supply |
AC220V/50HZ Single phase |
|
Features |
Single/double crimp terminals. Single and double end sleeves without heat shrink sleeve |
|
Production capacity |
20 lines/minute line length 200mm, two casing tubes length 25mm) |
|
Processing wire diameter |
0.5mm²- 2.5mm² other wire diameters can be customized |
|
Cutting length |
80mm 500m (requires length of casing wire) |
|
Stripping length |
1-10mm |
|
Casing length |
18~ 25mm |
|
Cutting accuracy |
0.5mm + cutting length * 0 2% or less |
|
air pressure |
0.6-0.7Mpa (Please use clean and dry air source) |
|
Testing device |
Wire missing or knotted, terminal detection, bushing detection |
|
Heat shrink device |
Hot air pipe + hot drying tunnel |
|
Dimensions |
2550L1800W*1650H (mm) (Without pay-off rack and hot drying tunnel) |
|
weight |
about 600Kg |
|
other |
Optional terminal pressure management device, terminal visual inspection |
